Real-time Malicious Login Detector with Apache Flink CEP
I was playing with Apache Flink several weeks ago. For exercise, I made a simple rule to detect malicious login pattern with Complex Event Processing (CEP). The rule is very simple, 3x login activities for the same username and IP in a minute. Then for the data source, I use Kafka.
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.wilianto.blog.login</groupId>
<artifactId>cep-malicious-login</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>jar</packaging>
<dependencies>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-streaming-java_2.10</artifactId>
<version>1.3.2</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-connector-kafka-0.10_2.10</artifactId>
<version>1.3.2</version>
</dependency>
<dependency>
<groupId>org.apache.flink</groupId>
<artifactId>flink-cep_2.10</artifactId>
<version>1.3.2</version>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<artifactId>maven-assembly-plugin</artifactId>
<version>2.3</version>
<configuration>
<descriptorRefs>
<descriptorRef>jar-with-dependencies</descriptorRef>
</descriptorRefs>
<archive>
<manifest>
<mainClass>com.wilianto.blog.login.App</mainClass>
</manifest>
</archive>
</configuration>
<executions>
<execution>
<id>make-assembly</id>
<phase>package</phase>
<goals>
<goal>single</goal>
</goals>
</execution>
</executions>
</plugin>
</plugins>
</build>
</project>
MaliciousLoginEvent.java
public class MaliciousLoginEvent {
private String username;
private String ip;
private String time;
//setter
//getter
}
The data will be saved in JSON format in the Kafka topic. So I created a deserializer for JSON to MaliciousLoginEvent POJO.
MaliciousLoginDeserializationSchema.java
public class MaliciousLoginDeserializationSchema
implements DeserializationSchema<MaliciousLoginEvent> {
public MaliciousLoginEvent deserialize(byte[] bytes)
throws IOException {
MaliciousLoginEvent maliciousLoginEvent = null;
try {
JSONObject jsonData = new JSONObject(new String(bytes));
maliciousLoginEvent = new MaliciousLoginEvent();
maliciousLoginEvent.setUsername(jsonData.getString("username"));
maliciousLoginEvent.setIp(jsonData.getString("ip"));
maliciousLoginEvent.setTime(jsonData.getString("time"));
} catch (JSONException e) {
System.out.println("Unable to deserialize Malicious Login Kafka Message");
} finally {
return maliciousLoginEvent;
}
}
public boolean isEndOfStream(MaliciousLoginEvent maliciousLoginEvent) {
return false;
}
public TypeInformation<MaliciousLoginEvent> getProducedType() {
return TypeExtractor.getForClass(MaliciousLoginEvent.class);
}
}
The main code does:
- Add streaming data source from Kafka topic (FailLogin)
- Create a malicious login pattern (3x failed with the same username & IP in a minute)
- Match the pattern with coming data
- Add sink to print out the malicious pattern
App.java
public class App {
public static void main(String[] args) throws Exception {
//set kafka properties
Properties properties = new Properties();
properties.setProperty("bootstrap.servers", "localhost:9092");
//set stream execution environtment
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
//stream kafka
FlinkKafkaConsumer010<MaliciousLoginEvent> flinkKafkaConsumer = new FlinkKafkaConsumer010<MaliciousLoginEvent>("FailLogin", new MaliciousLoginDeserializationSchema(), properties);
flinkKafkaConsumer.setStartFromLatest();
DataStream<MaliciousLoginEvent> kafkaInputStream = env.addSource(flinkKafkaConsumer).keyBy("username", "ip");
//create pattern
Pattern<MaliciousLoginEvent, ?> pattern = Pattern.<MaliciousLoginEvent>begin("firstAttempt")
.next("secondAttempt")
.next("thirdAttempt")
.within(Time.minutes(1));
PatternStream<MaliciousLoginEvent> patternStream = CEP.pattern(kafkaInputStream, pattern);
//add simple sink alarm
DataStream<String> result = patternStream.select(new PatternSelectFunction<MaliciousLoginEvent, String>() {
public String select(Map<String, List<MaliciousLoginEvent>> suspects) throws Exception {
MaliciousLoginEvent firstAttempt = suspects.get("firstAttempt").get(0);
MaliciousLoginEvent secondAttempt = suspects.get("secondAttempt").get(0);
MaliciousLoginEvent thirdAttempt = suspects.get("thirdAttempt").get(0);
String message = String.format("Suspected Login Activity! \n" +
"First event: %s \n" +
"Second event: %s \n" +
"Third event: %s \n", firstAttempt, secondAttempt, thirdAttempt);
System.out.println(message);
return message;
}
});
//execute
env.execute("Mallicious Login Detector");
}
}
Then for testing purpose, I made a simple ruby code in Sinatra to simulate login request. When login failed, an event will be sent to a Kafka topic in JSON format.
login.rb
require "sinatra"
require "kafka"
require "json"
user = { username: "wilianto", password: "12345678" }
post "/login" do
username = params["username"]
password = params["password"]
ip = params["ip"] # should be request.ip, just for testing purpose
if user[:username] == username && user[:password] == password
"Login success"
else
event = {
username: username,
ip: ip,
time: Time.now
}
# push to kafka topic FailLogin
kafka = Kafka.new(
seed_brokers: ["localhost:9092"]
)
kafka.deliver_message(JSON.dump(event), topic: "FailLogin")
"Login failed"
end
end

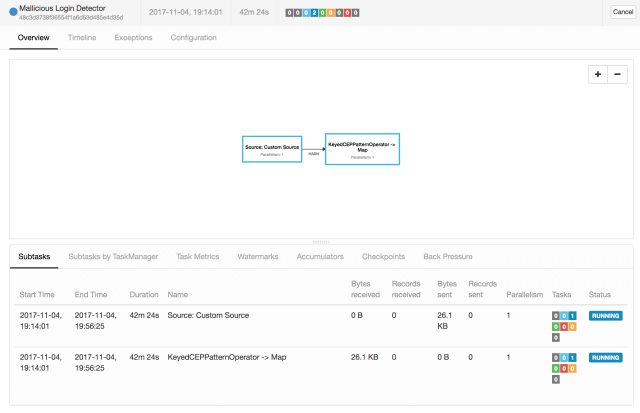

Compile the CEP Flink apps and run the JAR file on Flink. Run the ruby login code and simulate some requests.
>
Example Request:
curl -X POST \
http://localhost:4567/login \
-H 'cache-control: no-cache' \
-H 'content-type: multipart/form-data; boundary=----WebKitFormBoundary7MA4YWxkTrZu0gW' \
-H 'postman-token: cb6cf5f1-2361-ad2d-4d9b-addd7b71b474' \
-F username=wilianto \
-F password=wrongpassword \
-F ip=127.0.0.1
Example Output:
Suspected Login Activity!
First event: MaliciousLogin[username: wilianto, ip: 127.0.0.1, time: 2017-11-04 18:55:06 +0700]
Second event: MaliciousLogin[username: wilianto, ip: 127.0.0.1, time: 2017-11-04 18:55:12 +0700]
Third event: MaliciousLogin[username: wilianto, ip: 127.0.0.1, time: 2017-11-04 18:55:13 +0700]
Thanks for reading. Feel free to share what’s on your mind in the comment form below.
